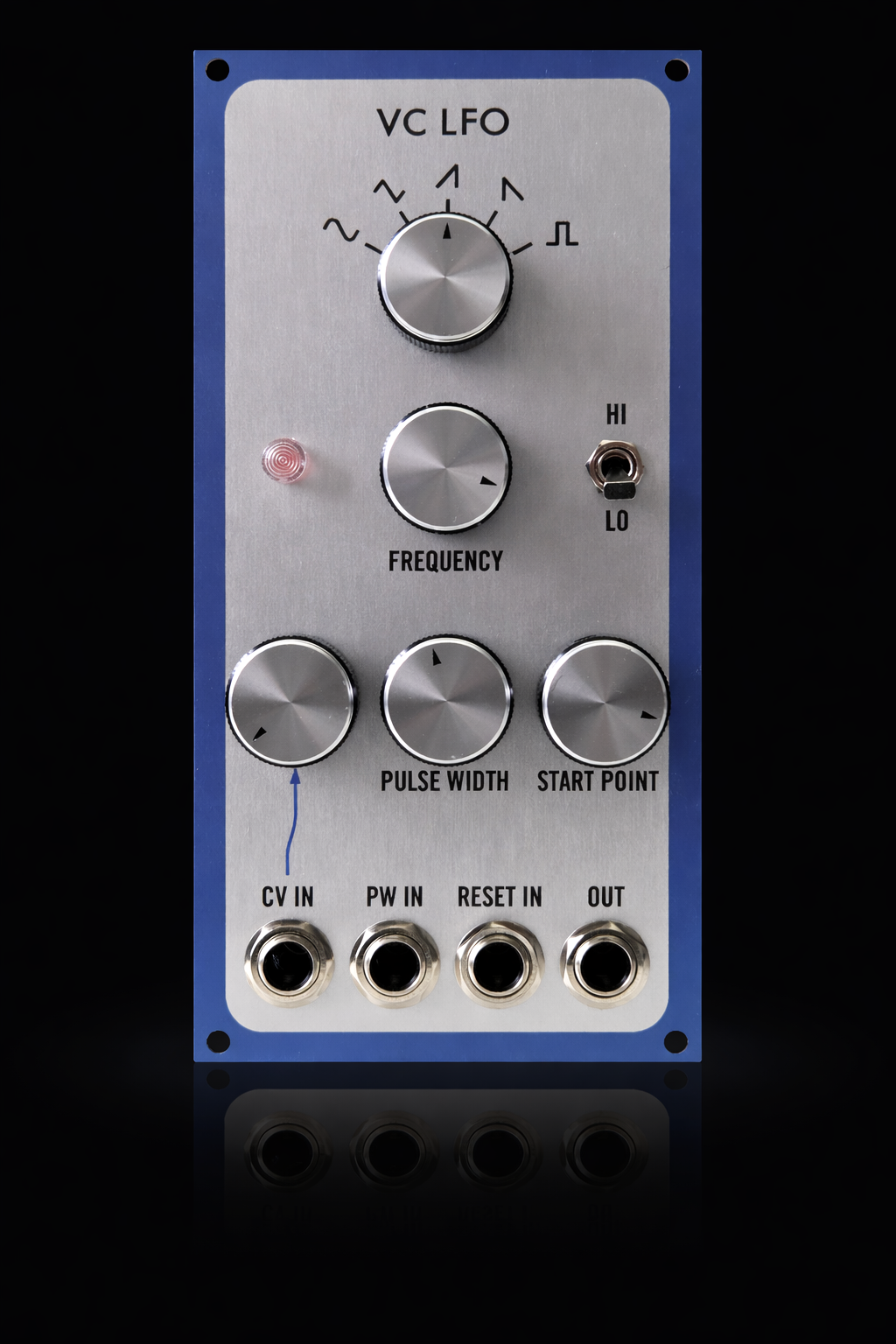

MODULE 2240 - VC LOW FREQUENCY OSCILLATOR

The 2240 VC LFO is a new module to complement the functions of the Eµ modular replica. It offers five different waveforms  : Sine, Triangle, Saw up, Saw down, Pulse. The frequency and pulse width can be controlled by both the panel controls and control voltage inputs. The special RESET function allows for the restarting of all five waveshapes from any point in their cycle. The precise point of the cycle is determined by the START POINT control and this reset will occur each time that either the Reset switch is pushed or a gate is applied to the Reset Input jack.
