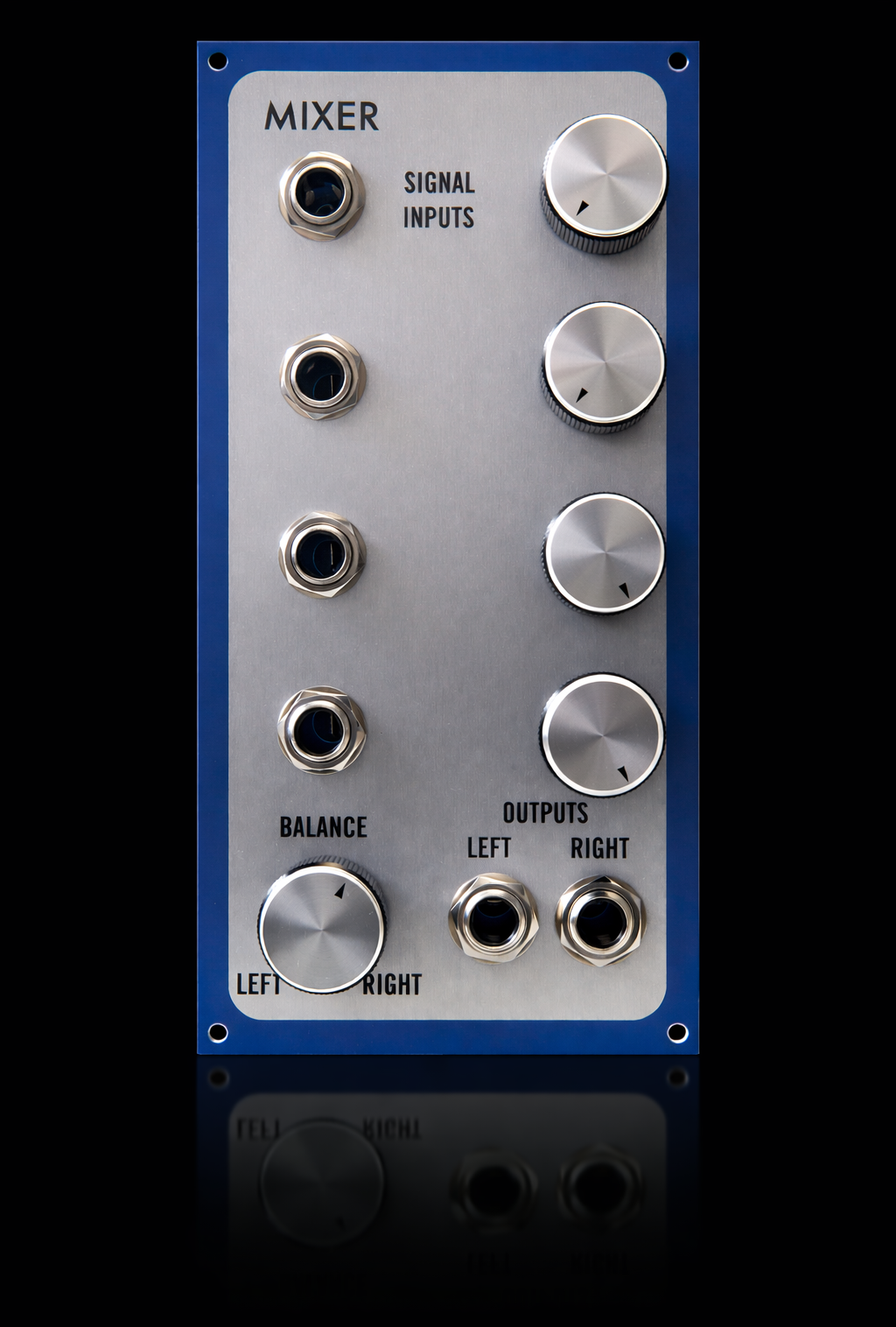

The 2455 Mixer is a four input, stereo output mixer with pan for use within the Em modular system.
While a mixer is seldom needed in the system as most modules provide input mixing (multiple inputs with attenuators) and output mixing (patching several outputs together in a multiple gives an even mix of the outputs), a dedicated mixer module may prove useful in special situations. The four signal inputs pass through their respective attenuators and are summed to give the mixer output signal. This is then routed into the left and right outputs in a ratio determined by the setting of the balance control. With the balance control fully counterclockwise, the output signal appears unattenuated at the left output jack and no signal appears at the right jack; with the control clockwise, the entire signal is routed instead to the right output jack. At intermediate settings, an appropriate signal level is sent to each jack to simulate spatial positioning, with the total power from the two jacks remaining constant. The balance control could thus be used as a master volume control if only one output were used.

Panel size : 1 Width Unit

Power Requirements : ±15 V @ 10 mA typical

Price : 180€
