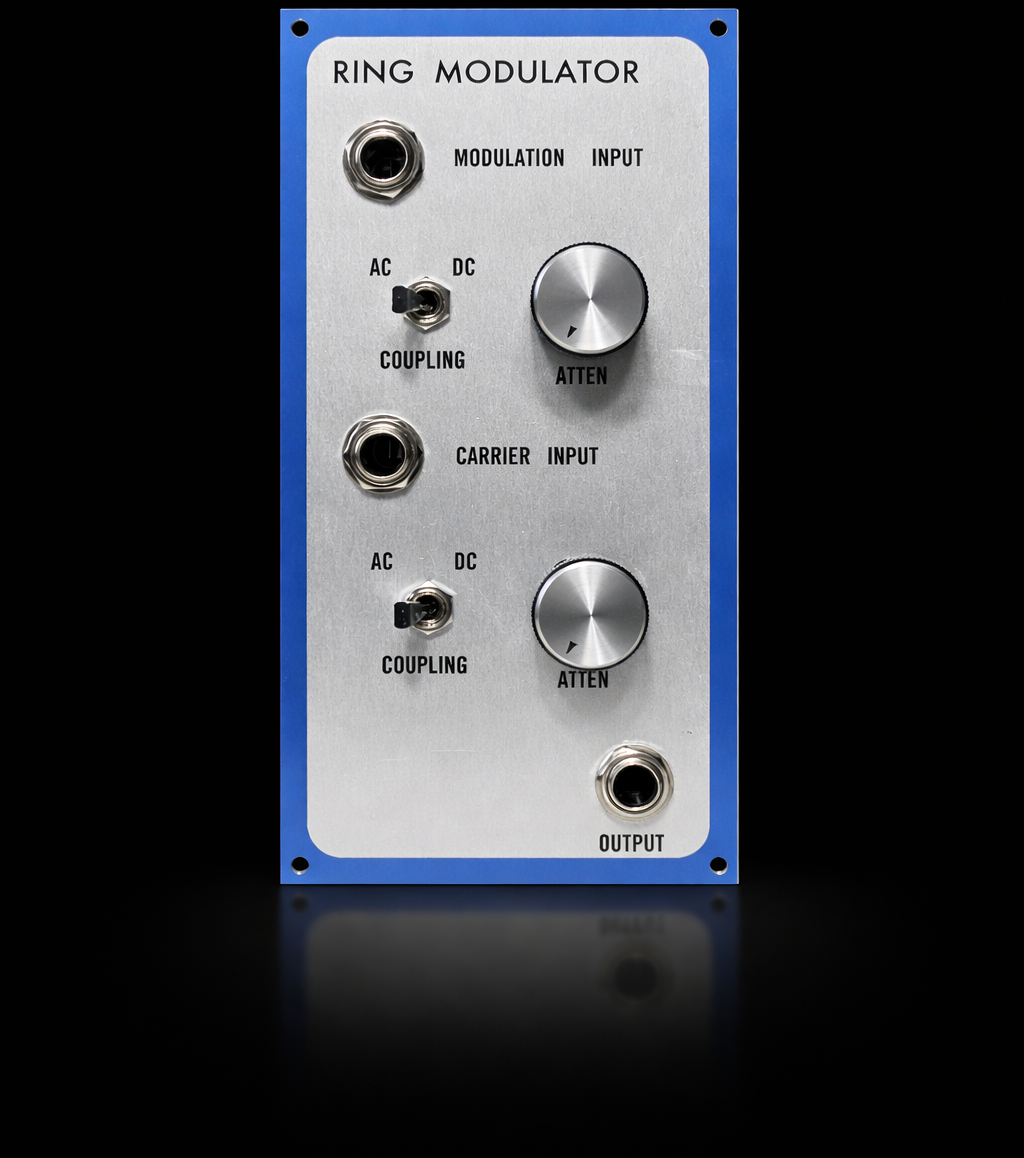

MODULE 2430 - RING MODULATOR

The 2430 Ring Modulator is a balanced modulator for electronic music. The module has two inputs, modulation and carrier, which are identical for high signal levels. The output is the algebraic product of the input voltages : Vout = Vmod x Vcar / 5 when the input attenuators are fully clockwise and the coupling switches are in the DC position. AC coupling will level-shift the corresponding input so it effectively centers around zero volts. This can have a striking effect on the output signal, due to the inherent non-linearity of balanced modulation.
The 2430 was designed for high carrier rejection in the absence of a modulation signal, typically in excess of 80dB. The reverse rejection, that of modulation feedthrough with no carrier, is only 40dB.

Panel size : 1 Width Unit

Power Requirements : ±15 V @ 10 mA typical

Price : 210€
