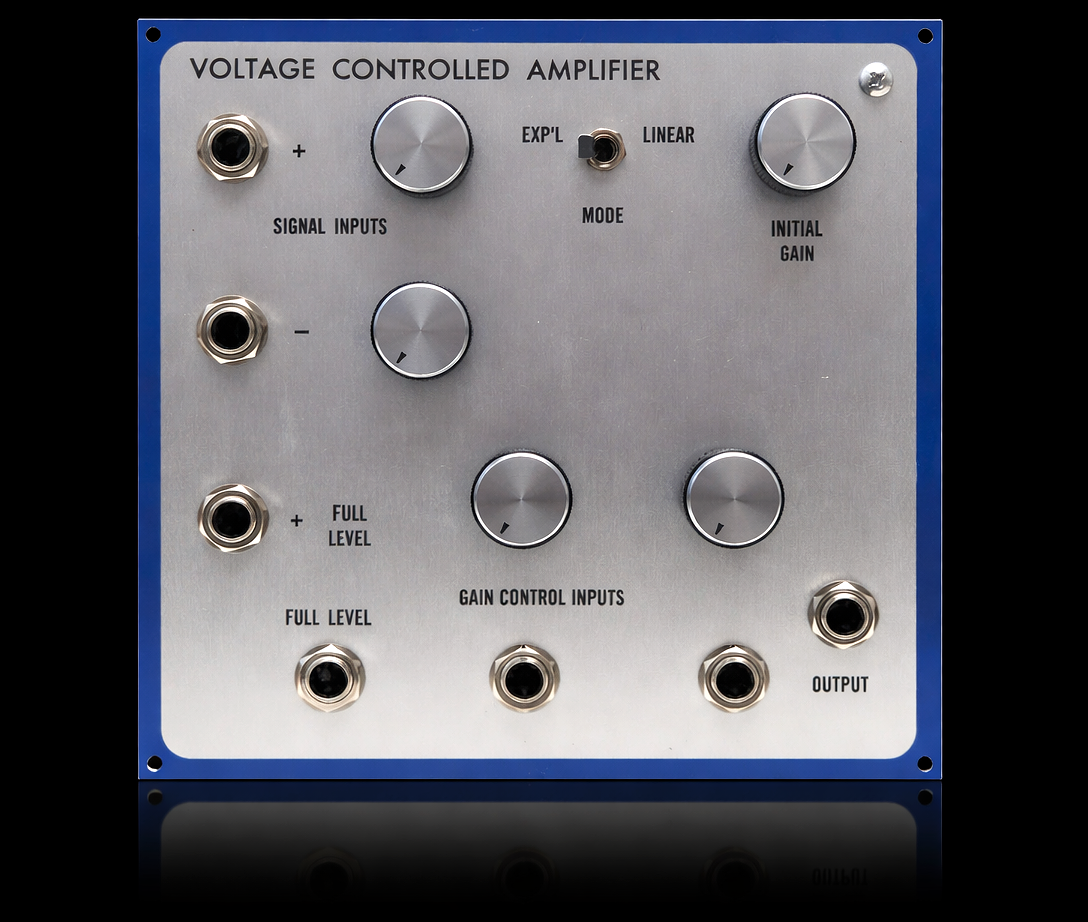

MODULE 2000 - VOLTAGE CONTROLLED AMPLIFIER

The 2000 VCA is an exponentially and/or linearly controlled amplifier for envelope shaping or control functions. The top two signal inputs pass through their respective attenuators, and are summed with the full level input. The result appears at the output, amplified by a factor determined by the control inputs. The second signal input is inverting for increased flexibility. The control inputs are similarly summed with the initial gain control (which effectively varies from -5 to +5 volts) to produce the total input control voltage. The 2 position mode switch determines the function of the control voltages. In linear mode, the amplifier has zero gain for total control voltages below zero, and the gain increases linearly above zero, passing through unity at +5 volts. In exponential mode, the amplifier again has unity gain at +5 volts, and changes 10 dB per volt around this point. Maximum gain available from the amplifier is approximately +6 dB.

Panel size : 2 Width Units

Power Requirements : ±15 V @ 12 mA typical

Price : 260€
